Wire Harness Series for Automobile
PE Flexible Conduit
E2017
Light weight, portable, easy assembly, improved efficiency, reduced costs.
Features:
* Material: Polyethylene (PE)
* Light, flexible, fast installation.
* Temperature range -30°C ~ +80°C

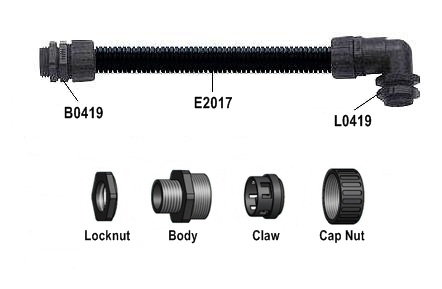

* Best performance with fittng B0419/L0419
* B419 Nylon Straight Connector - PF Thread
* L0419 Nylon 90° Connector - PF Thread
* IP65
Specification
| Catalog number | Trade size (inch) |
Inner diameter (mm) |
Outside diameter (mm) |
Packing length (m) |
|---|---|---|---|---|
| E20170300 | 3/8"" | 13.8 | 17.8 | 100 |
| E20170400 | 1/2" | 17.2 | 22.0 | 100 |
| E20170600 | 3/4" | 21.2 | 26.0 | 100 |
| E20171000 | 1" | 28.7 | 34.0 | 50 |
| E20171200 | 1-1/4" | 36.0 | 42.0 | 50 |
| E20171400 | 1-1/2" | 40.0 | 48.0 | 50 |
| E20172000 | 2" | 52.0 | 60.0 | 50 |
