Connectors for Plastic Protective Tubing System
Nylon Straight Connector - PF Thread (Suitable for type N2017)

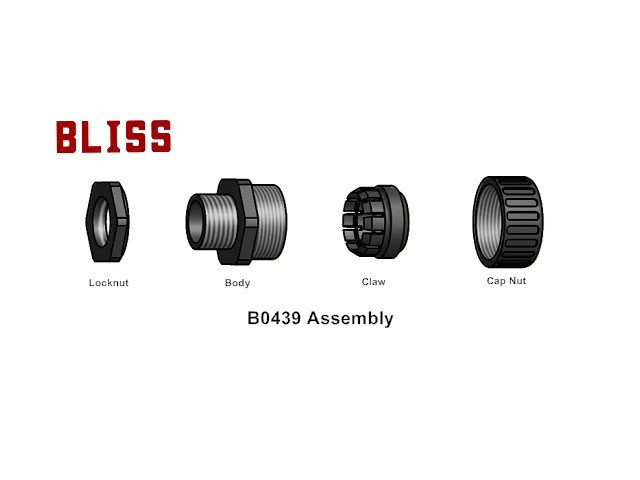

B0439
Suitable for type E2017 PE flexible conduit.
Brand: VONYE
Features:
* Polyamine 6 (PA6) (Nylon 6), meets UL 94 V2.
* PF thread
* Light
* Weather resistant
* High electrical properties.
* For type E2017 PE flexible conduit.
* Temperature range: -10°C~+120°C.
* IP65.
* Color: black, gray
* RoHS & REACH compliant
* 90 angle type L0419 is available.

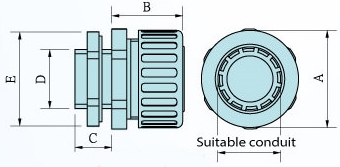

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Thread | Suitable conduit (mm) | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| B04390200 | B05390200 | 5/16" | 28.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 13.0 | 100 |
| B04390300 | B05390300 | 3/8" | 28.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 15.8 | 100 |
| B04390400 | B05390400 | 1/2" | 33.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 21.2 | 100 |
| B04390600 | B05390600 | 3/4" | 39.0 | 28.0 | 13.0 | 26.4 | 40.0 | PF 3/4 | 28.5 | 50 |
| B04391000 | B05391000 | 1" | 46.0 | 31.0 | 15.0 | 33.3 | 47.5 | PF 1 | 34.5 | 50 |
| B04391200 | B05391200 | 1-1/4" | 55.5 | 33.0 | 17.0 | 41.9 | 55.5 | PF 1-1/4 | 42.5 | 25 |
