Products

Flexible Carrier

Plastic Cable Drag Chain

A8019

Brand: BESUN

Features:
* Made of fiber reinforced plastic (FRP), chemical resistant,
temperature range from -25°C ~ 125°C, suitable for long - term
movement.
* Screw driver is able to open the cap, convenient for the setting
and change of wires and all kinds of conduits.
* Suitable for: Machine tools, robots, fiber machine, protective
tubes of pneumatic tube, hydraulic cylinder, rubber tubes for gas
& liquid.

Specification

A8019

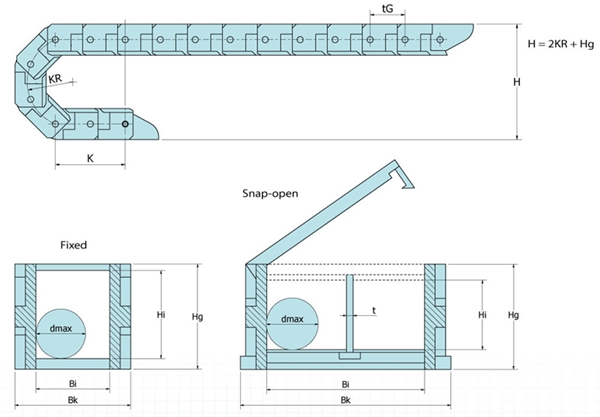

Type	Outside Width (Bk) (mm)	Outside Height (Hg) (mm)	Inside With (Bi) (mm)	Inside Height (Hi) (mm)	Pitch (tG) (mm)	Wire/Conduit Diameter (dmax) (mm)	Bending Raidus (mm)	Cap	*Divider (t) (mm)
A8019-0 (320.20)	24	25	13	19	32.5	11	37	Fixed	-
A8019-1 (320.42)	37	27	24	19	32.5	16	37, 47, 77, 100	Fixed	-
A8019-2 (450.21)	57	40	38	24	45.5	22	52, 94, 125, 150	Snap-open	2.5
A8019-3 (450.41)	77	40	58	24	45.5	22	52, 94, 125, 150, 200	Snpa-open	2.5
A8019-4 (450.61)	97	40	78	24	45.5	22	52, 94, 125, 200	Snpa-open	2.5
A8019-5 (625.23)	93	62	65	34	63.0	31	90, 125, 200	Snpa-open	3.5
A8019-6 (625.43)	136	62	108	34	63.0	31	90, 125, 200, 300	Snpa-open	3.5

* Detailed flange types and dimensions, please see E-Catalog.
