Cable Strain Relief Flexible Connectors
Nylon Cable Gland - PF Thread
B7439
Features:
* Polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
* PF thread
* Light
* Weather resistant.
* Temperature range: -10°C~+120°C.
* IP67.
* Color: black, gray
* RoHS & REACH compliant
* 90 angle type L7439 is available.

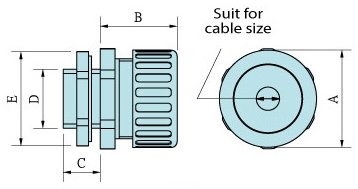

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Thread | Suitable for cable size | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| B74390306 | B75390306 | 3/8" | 28.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 6 -8 | 100 |
| B74390309 | B75390309 | 3/8" | 33.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 9 - 23 | 100 |
| B74390312 | B75390112 | 3/8" | 39.0 | 28.0 | 13.0 | 21.0 | 32.0 | PF 3/4 | 12-15 | 100 |
| B74390615 | B75390615 | 3/4" | 39.0 | 28.0 | 13.0 | 26.4 | 40.0 | PF 1 | 15-18 | 50 |
