Other conduit
Flange
H9033

- The suspension flange is assembled with flexible braiding conduit and the 355° rotation angel offers wide operating direction.
-For suspension control panel.

Features:
* A2066 inner core (interlocked) with #304 stainless steel braiding.
* The suspension flange is assembled with flexible braiding conduit
and the 355° rotation angle offers wide operating direction.
* For control panel of suspension machine.
* Female connector available.

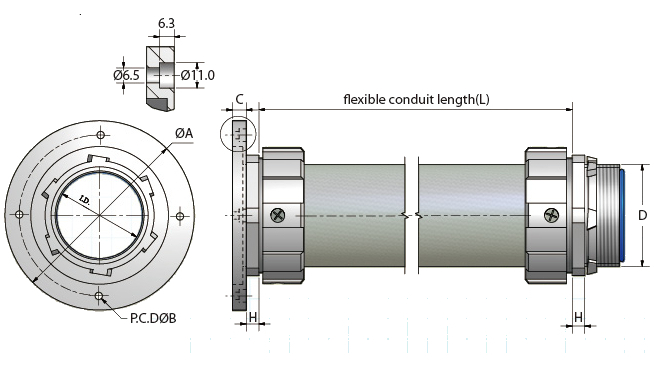

Specification

H9033

Catalog
number		 Trade size
(inch)		 I.D
(mm)		 Dimension
A
(mm)		 Dimension
B
(mm)		 Dimension
C
(mm)		 Dimension
H
(mm)		 D* Bolt Max.
Bearing
Weight
(kgf)
H90331400 1-1/2" 38.0 100.0 80.0 10.0 7.0 NPT 1-1/2 M6 x 4 200
H90332000 2" 49.5 120.0 95.0 10.0 7.0 NPT 2 M6 x 4 200
H90332400 2-1/2" 60.0 145.0 120.0 12.0 11.0 NPT 2-1/2
PT 2-1/2		 M6 x 4 400
H90333000 3" 75.0 165.0 140.0 12.0 11.0 NPT 3
PT 3		 M6 x 4 400

* Female connector available
