Connectors for Plastic Protective Tubing System

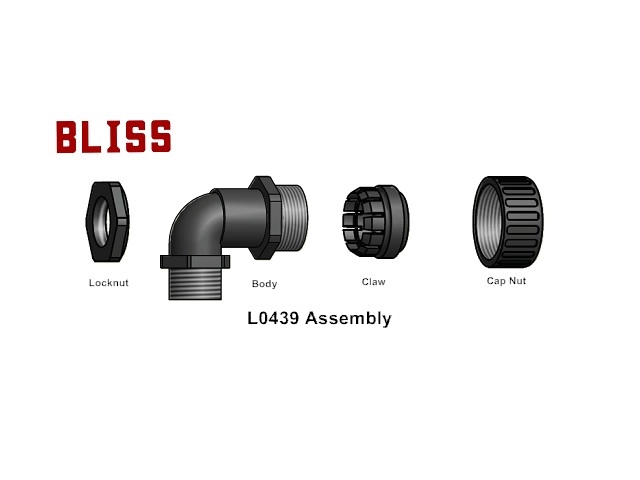

Nylon 90° Connector - PF Thread (Suitable for type N2017)
L0439
Suitable for type N2017 nylon flexible conduit.
Brand: VONYE
Features:
* Polyamide 6 (PA6) (Nylon 6), meets UL94 V2.
* PF thread
* Light
* Weather resistant
* For type N2017 nylon flexible conduit.
* Temperature range: -10°C~+120°C.
* IP65.
* Color: black, gray
* RoHS & REACH compliant
* Straight type B0439 is available.

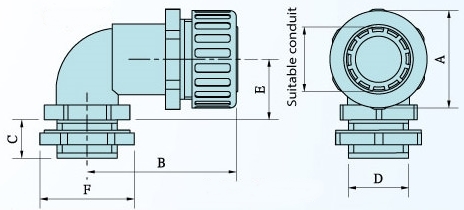

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) | Thread | Suitable conduit (mm) | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L04390200 | L05390200 | 5/16" | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 13.0 | 50 |
| L04390300 | L05390300 | 3/8" | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 15.8 | 50 |
| L04390400 | L05390400 | 1/2" | 33.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 21.2 | 50 |
| L04390600 | L5390600 | 3/4" | 39.0 | 52.0 | 13.0 | 26.4 | 25.0 | 40.0 | PF 3/4 | 28.5 | 25 |
