Special processing milling cutter

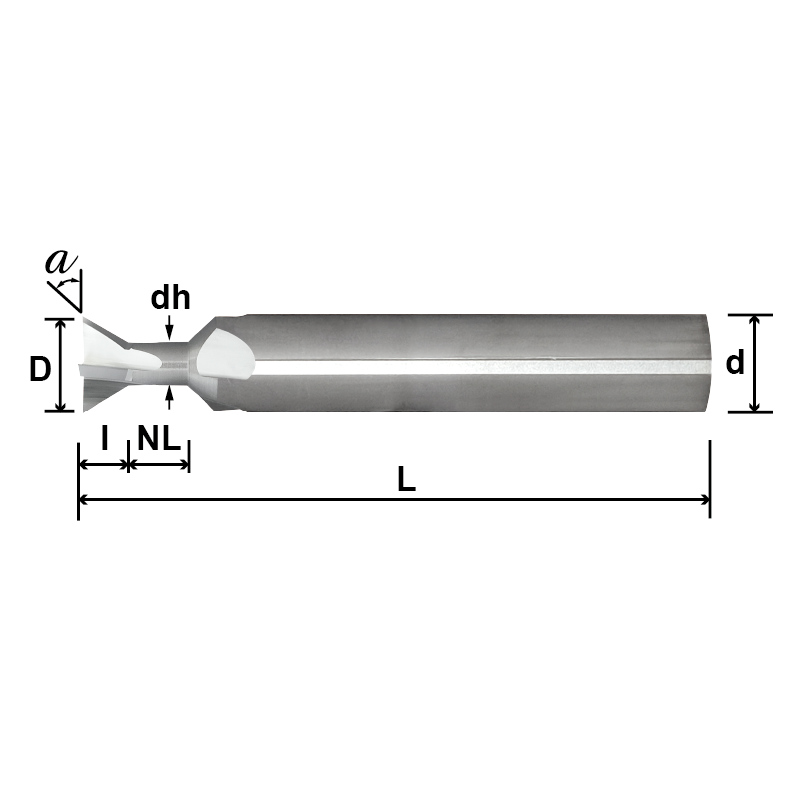

Carbide Dove-Tail End Mills
RJ
Remarks: For other specifications, please call to inquire.
Specification
(Unit：mm)
|
Model No. |
a Top Angle |
D Diameter |
I Flute Length |
dh Neck dia |
NL Neck Length |
T Flute |
d Shank Diameter |
L Overall Length |
|
2 RJ 030454 |
45° | 3 |
0.8 |
1.4 | 3 | 4 | 6 |
60 |
| 2 RJ 040454 | 45° | 4 | 1 | 2 | 3 | 4 | 4 |
50 |
| 2 RJ 040454 | 45° | 4 | 1 | 2 | 3 | 4 | 6 |
60 |
| 2 RJ 050454 | 45° | 5 | 1.2 | 2.5 | 4 | 4 | 6 |
60 |
| 2 RJ 060454 | 45° | 6 | 1.4 | 3 | 4 | 4 | 6 |
60 |
| 2 RJ 060453S2.7 | 45° | 6 | 2.7 | 3 | 4 | 4 | 6 |
60 |
| 2 RJ 080454 | 45° | 8 | 1.9 | 4 | 5 | 4 | 8 |
60 |
| 2 RJ 080456 | 45° | 8 | 1.9 | 4 | 5 | 6 | 8 |
60 |
| 2 RJ 100454 | 45° | 10 | 2.4 | 5 | 6 | 4 | 10 |
75 |
| 2 RJ 100456 | 45° | 10 | 2.4 | 5 | 6 | 6 | 10 |
75 |
| 2 RJ 120454 | 45° | 12 | 2.9 | 6 | 7 | 4 | 12 |
75 |
| 2 RJ 120456 | 45° | 12 | 2.9 | 6 | 7 | 6 | 12 |
75 |
| 2 RJ 030604 | 60° | 3 | 1.2 | 1.5 | 3 | 4 | 6 |
60 |
| 2 RJ 040604 | 60° | 4 | 1.6 | 2 | 3.5 | 4 | 6 |
60 |
| 2 RJ 050604 | 60° | 5 | 2.2 | 2.3 | 4 | 4 | 6 |
60 |
| 2 RJ 060604 | 60° | 6 | 2.7 | 2.7 | 4 | 4 | 6 |
60 |
| 2 RJ 080604 | 60° | 8 | 3.7 | 3.6 | 5 | 4 | 8 |
60 |
| 2 RJ 080604 | 60° | 8 | 3.7 | 3.6 | 5 | 4 | 8 |
60 |
| 2 RJ 100604 | 60° | 10 | 4.6 | 4.5 | 6 | 4 | 10 |
75 |
| 2 RJ 100606 | 60° | 10 | 4.6 | 4.5 | 6 | 6 | 10 |
75 |
| 2 RJ 120454 | 60° | 12 | 5.6 | 5.4 | 7 | 4 | 12 |
75 |
| 2 RJ 120456 | 60° | 12 | 5.6 | 5.4 | 7 | 6 | 12 |
75 |
