Tungsten Carbide Holder

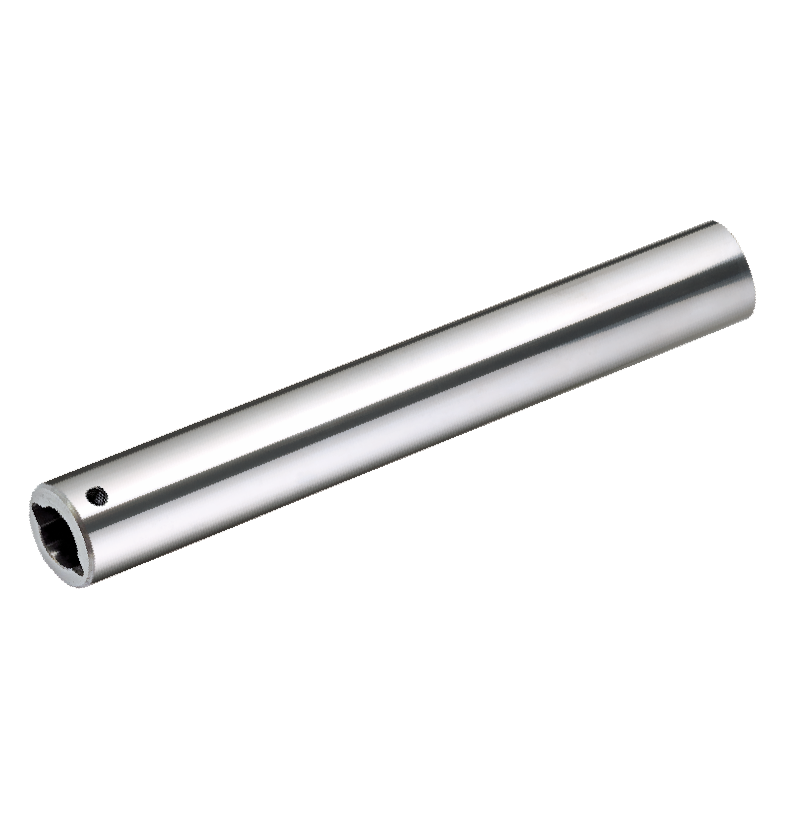

GLCK Tungsten Carbide Anti-Vibration Boring System Tool Holder
GLCK
1.One piece formed design of the Tungsten Carbide Tools holder, will have no issue of the welding breakage, also have excellnet Stiffness and great Anti-Vibration.
2.Stretch the depth processing, improve the precision of the surface. Achieve the ultra-long, ultra-deep, abd ultra-high-precision machining.
3.Boring head suggest brand: BIG, AW, ACROW
Remarks: For other specifications, please call to inquire.
Specification
| Model No. | L | D | GLCK | M |
| GLCK1-19-150L | 150 | 19 | GLCK1 | 4 |
| GLCK1-19-200L | 200 | 19 | GLCK1 | 4 |
| GLCK1-19-250L | 250 | 19 | GLCK1 | 4 |
| GLCK1-20-150L | 150 | 20 | GLCK1 | 4 |
| GLCK1-20-200L | 200 | 20 | GLCK1 | 4 |
| GLCK1-20-250L | 250 | 20 | GLCK1 | 4 |
| GLCK2-24-200L | 200 | 24 | GLCK2 | 5 |
| GLCK2-24-250L | 250 | 24 | GLCK2 | 5 |
| GLCK2-24-300L | 300 | 24 | GLCK2 | 5 |
| GLCK2-25-200L | 200 | 25 | GLCK2 | 5 |
| GLCK2-25-250L | 250 | 25 | GLCK2 | 5 |
| GLCK2-25-300L | 300 | 25 | GLCK2 | 5 |
| GLCK3-31-250L | 250 | 31 | GLCK3 | 6 |
| GLCK3-31-300L | 300 | 31 | GLCK3 | 6 |
| GLCK3-31-350L | 350 | 31 | GLCK3 | 6 |
| GLCK3-31-400L | 400 | 31 | GLCK3 | 6 |
| GLCK3-32-250L | 250 | 32 | GLCK3 | 6 |
| GLCK3-32-300L | 300 | 32 | GLCK3 | 6 |
| GLCK3-32-350L | 350 | 32 | GLCK3 | 6 |
| GLCK3-32-400L | 400 | 32 | GLCK3 | 6 |
| GLCK4-42-250L | 250 | 42 | GLCK4 | 8 |
| GLCK4-42-300L | 300 | 42 | GLCK4 | 8 |
| GLCK4-42-400L | 400 | 42 | GLCK4 | 8 |
| GLCK4-42-500L | 500 | 42 | GLCK4 | 8 |
