Heavy-Duty&Anti-Vibration Operation Series

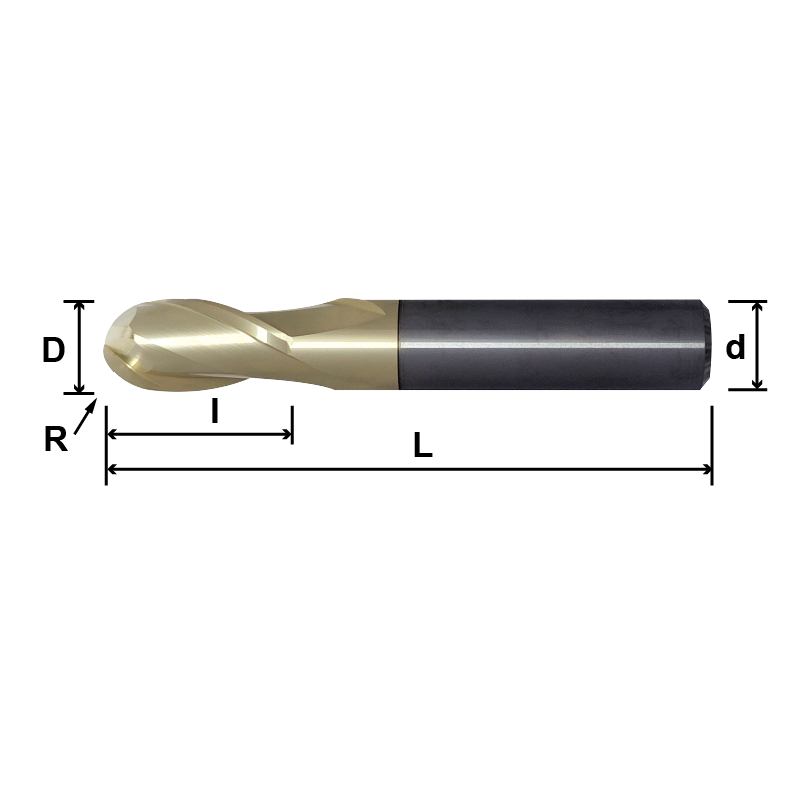

CEB (Highly Efficient Operation,Ball Nose),2 Flutes
CEB
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
R Radius |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
|
CEB 0102GR |
0.5R |
1 |
2 |
4 |
50 |
| CEB 0102GRD6 | 0.5R | 1 | 2 | 6 |
50 |
| CEB 0152GR | 0.75R | 1.5 | 3 | 4 |
50 |
| CEB 0152GRD6 | 0.75R | 1.5 | 3 | 6 |
50 |
| CEB 0202GR | 1R | 2 | 4 | 4 |
50 |
| CEB 0202GRD6 | 1R | 2 | 4 | 6 |
50 |
| CEB 0302GRD3 | 1.5R | 3 | 6 | 3 |
50 |
| CEB 0302GR | 1.5R | 3 | 6 | 4 |
50 |
| CEB 0302GRD6 | 1.5R | 3 | 6 | 6 |
50 |
| CEB 0402GR | 2R | 4 | 8 | 4 |
50 |
| CEB 0402GRD6 | 2R | 4 | 8 | 6 |
50 |
| CEB 0502GR | 2.5R | 5 | 10 | 6 |
50 |
| CEB 0602GR | 3R | 6 | 12 | 6 |
50 |
| CEB 0802GR | 4R | 8 | 16 | 8 |
60 |
| CEB 1002GR | 5R | 10 | 20 | 10 |
75 |
| CEB1202GR | 6R | 12 | 24 |
12 |
75 |
