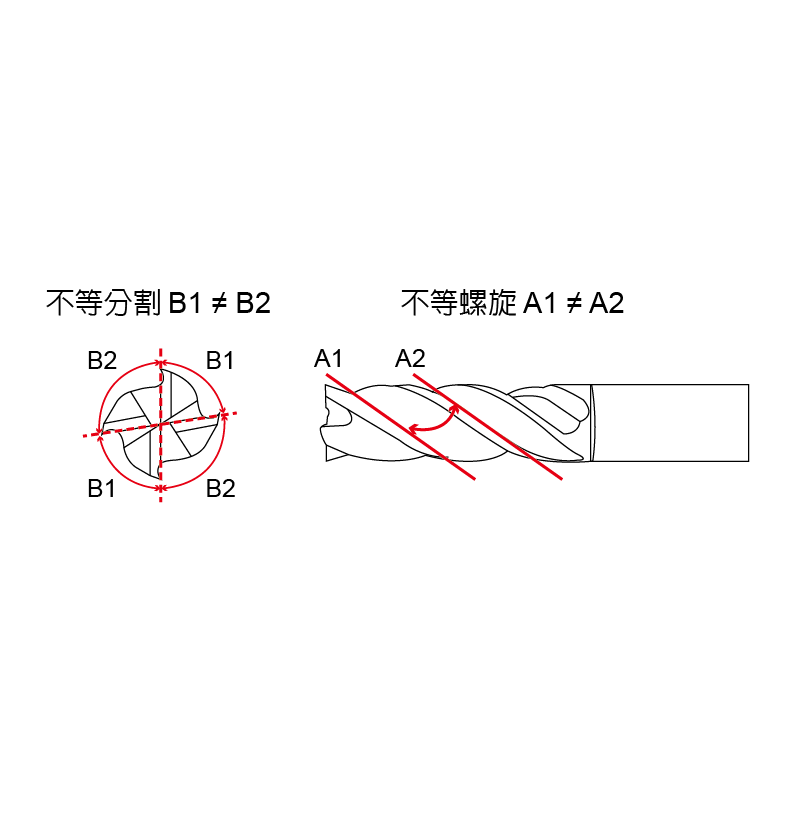

Heavy-Duty&Anti-Vibration Operation Series
CER (Highly Efficient Operation, Corner Radius),4 Flutes
CER
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|

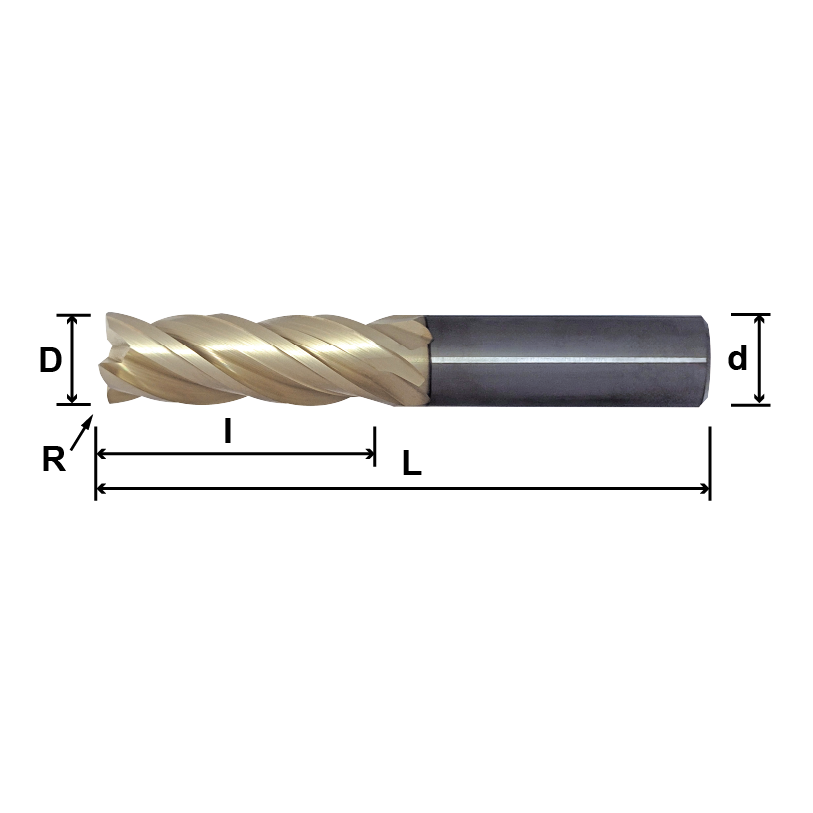

Model No. |
D Diameter |
R Corner Radius |
I Flute Length |
d Shank Diameter |
L Overall Length |
|
CER 010024GR |
1 |
0.2R |
3 |
4 |
50 |
| CER 015024GR | 1.5 | 0.2R | 4.5 | 4 |
50 |
| CER 015054GR | 1.5 | 0.5R | 4.5 | 4 |
50 |
| CER 020024GR | 2 | 0.2R | 6 | 4 |
50 |
| CER 020054GR | 2 | 0.5R | 6 | 4 |
50 |
| CER 025024GR | 2.5 | 0.2R | 7.5 | 4 |
50 |
| CER 025054GR | 2.5 | 0.5R | 7.5 | 4 |
50 |
| CER 030024GRD3 | 3 | 0.2R | 9 | 3 |
50 |
| CER 030024GR | 3 | 0.2R | 9 | 4 |
50 |
| CER 030054GRD3 | 3 | 0.5R | 9 | 3 |
50 |
| CER 030054GR | 3 | 0.5R | 9 | 4 |
50 |
| CER 030104GR | 3 | 1R | 9 | 4 |
50 |
| CER 040024GR | 4 | 0.2R | 12 | 4 |
50 |
| CER 040054GR | 4 | 0.5R | 12 | 4 |
50 |
| CER 040104GR | 4 | 1R | 12 | 4 |
50 |
| CER 060054GR | 6 | 0.5R | 18 | 6 |
50 |
| CER 060104GR | 6 | 1R | 18 | 6 |
50 |
| CER 080054GR | 8 | 0.5R | 24 | 8 |
60 |
| CER 080104GR | 8 | 1R | 24 | 8 |
60 |
| CER 100054GR | 10 | 0.5R | 30 | 10 |
75 |
| CER 100104GR | 10 | 1R | 30 | 10 |
75 |
| CER 120054GR | 12 | 0.5R | 36 | 12 |
75 |
| CER 120104GR | 12 | 1R | 36 | 12 |
75 |
| CER 120204GR | 12 | 2R | 36 | 12 |
75 |
