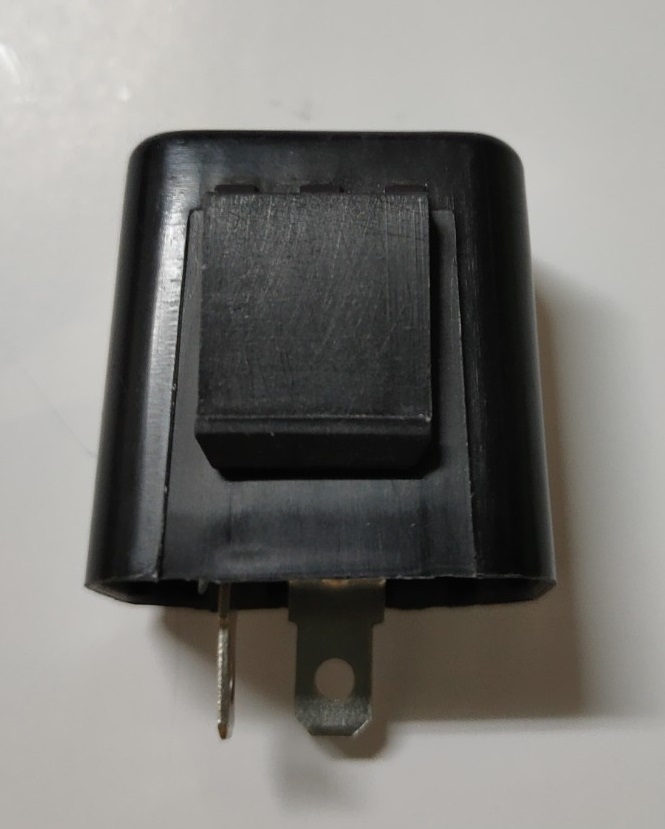

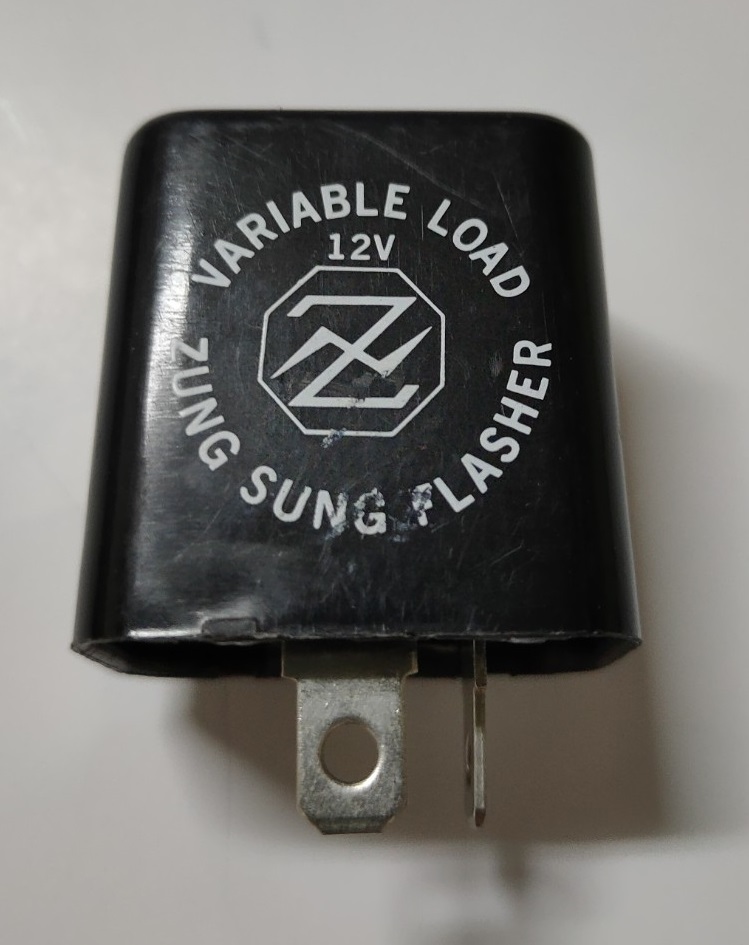

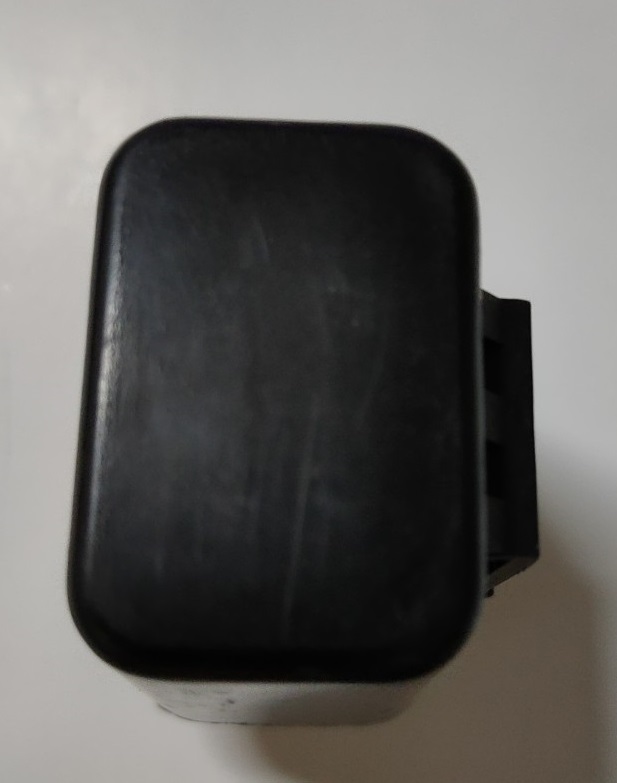

Thermo-Coupler Type Flasher
G2162
G2162
A circuit consist of power switch and load .
When use of turn signal ,the power will through the flasher and then for control the turn signal flashing.
Specification
**Rated Load: 2 Sale Number 10W Lamps
1 Sale Number 3W Lamps
**Lamp Rating: No.10W 0.83 Amps At 12 V
No.3W 0.25 Amps At 12V
**Temperature Operating:-20°C~+80°C
**Rated Voltage: 11-15 Volts DC
**Voltage Drop At Rated current: 800mv
**Duty Cycle: 35%~75%

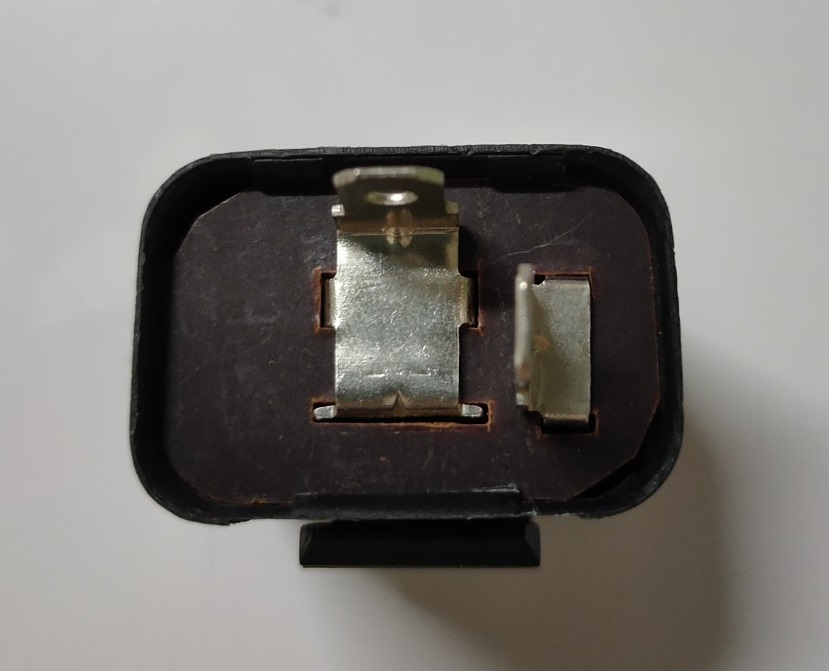

**Electrical Source: L=Load(Lamp Input)
B=Battery(Power Input)
**Time To First Flash: Less Than 1.5 Seconds
