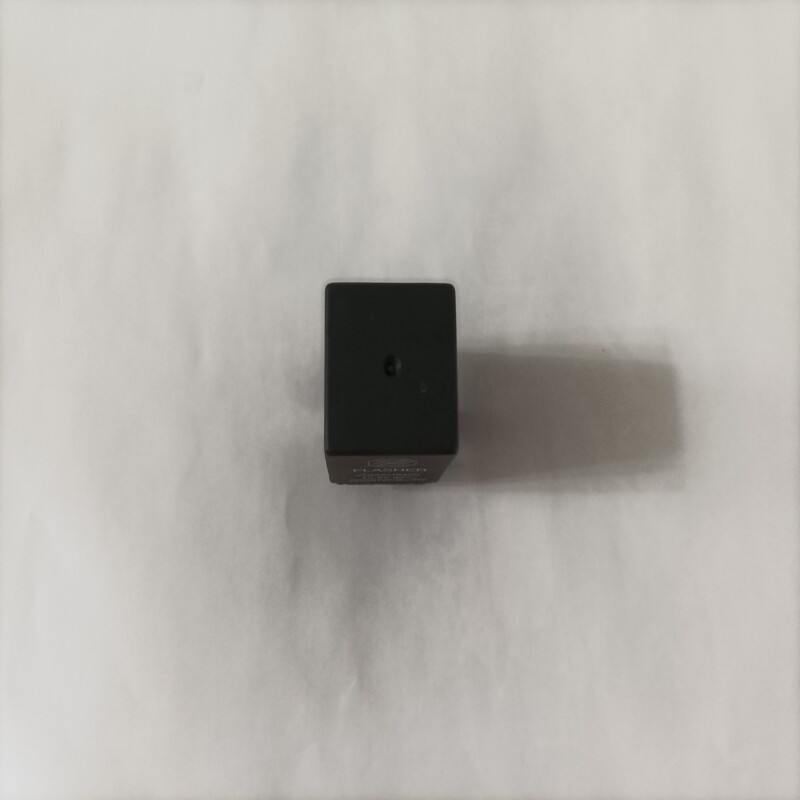

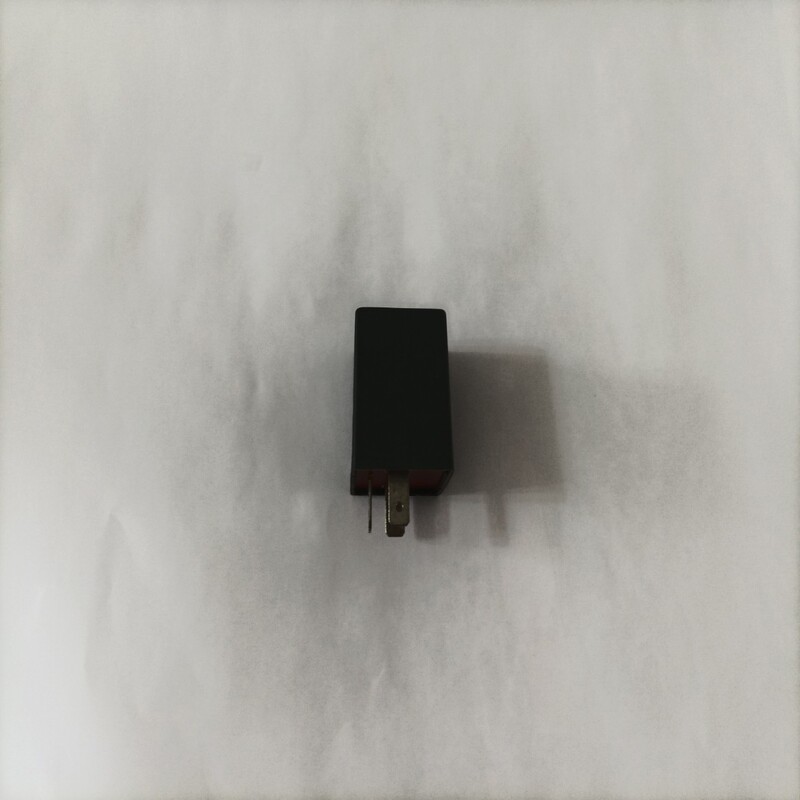

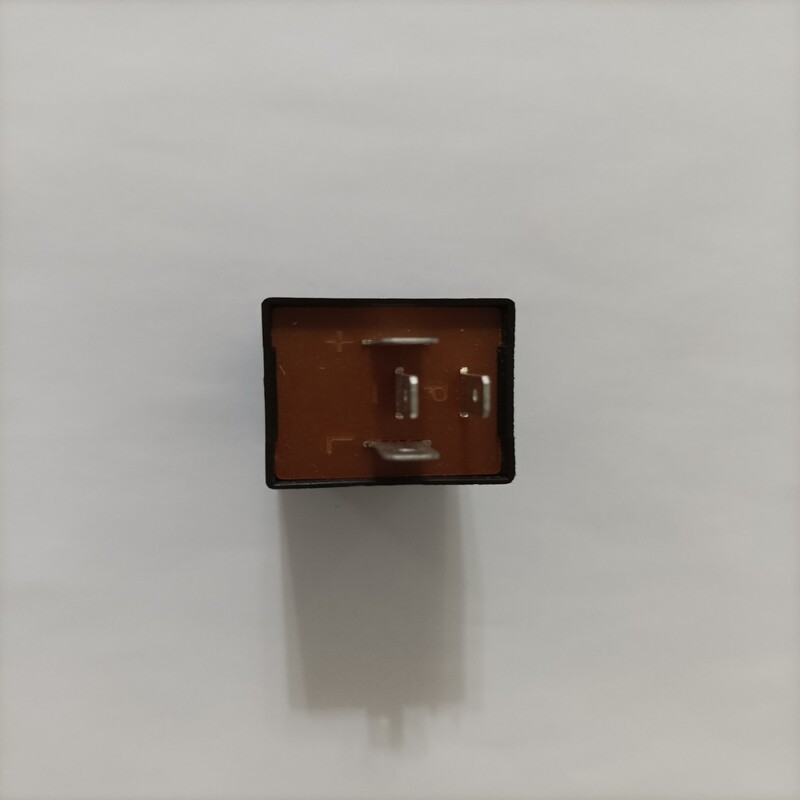

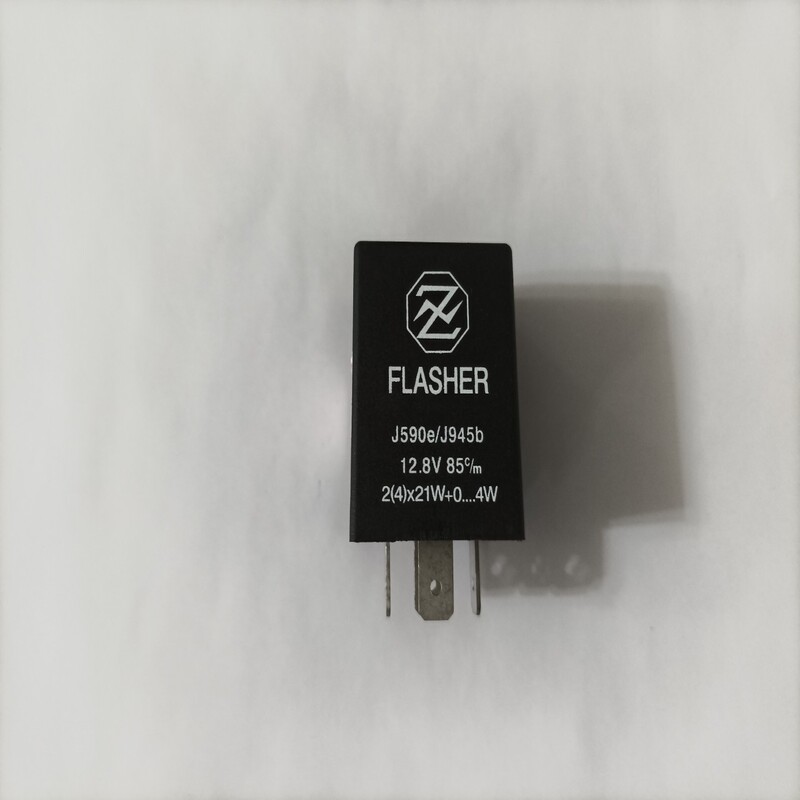

Electronic Flasher With bulb Failure Warning
CF14F
CF14F
When the blinker is normal, the flasher will flash 85 times per minute.
If the blinker bulb is burnt, the flashing speed will increase to 170 times per minute to remind the driver to change the blinker bulb for a new one.
If the driver is not aware of the bulb burnt, the car behind hime might make a wrong judgment, and causes an accident.
Specification
**Rated Load Current: 2~4 Number 21W~23W Lamps ,1 Number 4W Pilot
**Voltage Range: 11V~15V
**Voltage Drop At Rated Current: 800mv At Max Load
**Frequency: 60~120 F.P.M
**Duty Cycle(flasher rated): 37%~75%
**Temperature: -30°C~+80°C
**Life Test: 36hr At Max Load
