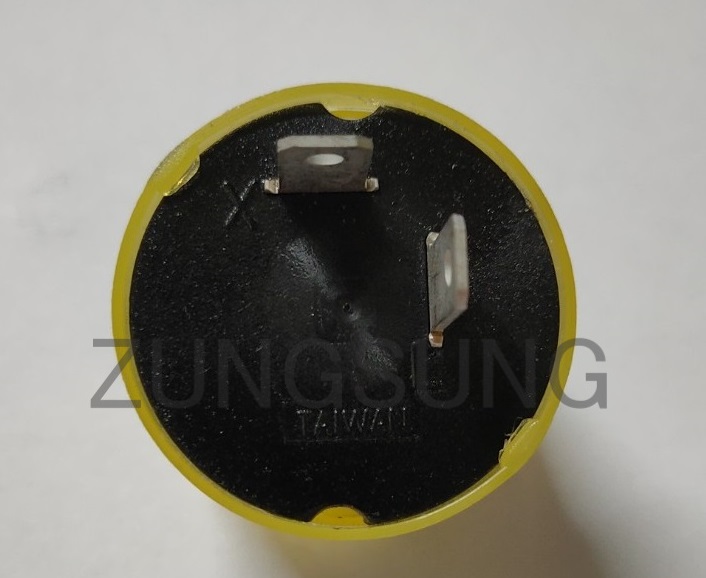

Led Turn Signal Relay
G552L-BUZ
G552L-BUZ
Resolves LED related turn signal problems such as rapid flashing, not flashing, or bulb burnt out warning on dashboard.
1. 5V-15V voltage range can be used
2. Can be connected to LED lights
3. Small size and light weight (10G)
4. The rated current is 0.5A-12A, the maximum power can reach 150W
5. Built-in buzzer
6. The temperature can be adjusted without additional radiator
7. Long service life
**This product has obtained US and Taiwan patents.
Specification
*1 piece of 2-pin 12V Electronic LED Flasher Relay
*Nominal Voltage: 12V
* Rated Voltage:5V-15V
*Switch Current: 0.5A - 12A MAX 150W
*Put-In Voltage: ≤11V
*Flash Rate: 60-120 Flash Per Minute
*Temperature Operating Range: -25∘F to 140∘F
