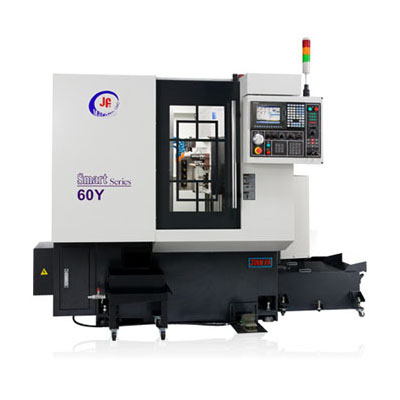

COMPACT CNC LATHE MACHINE
SMART-42Y／52Y／60Y
SMART-42Y/52Y/60Y
-
Max. Four Axis Simultaneous Control. (X/Y/Z/Cs)
-
Max. 18 tool holders include four cross/face drill tool holder.
-
Max. Turning Diameter 60mm
-
Fast tool changing speed by Gang type tooling system and it saves cycle time.
-
Y / Cs axis work simultaneously can make polygonal parts.
-
Easy operation, Short Time Study.
Specification
| ITEM | UNIT | SMAR-42Y / 60Y |
|---|---|---|
| Main spindle max. turning diameter | mm | 42 / 60 |
| Max. turning length | mm | 130 |
| Max. stroke X | mm | 300 |
| Max. stroke Y | mm | 432 |
| Max. stroke Z | mm | 150 |
| Max. side / face drilling diameter | mm | 16 |
| Max. side / face tapping diameter | mm | M12 |
| External tool holder | pcs | 6 |
| Inner tool holder | pcs | 6 |
| Cross drilling tool holder | pcs | 6 |
| Face drilling tool holder | pcs | 6 |
| Tool size | mm | 20x20x110 ~ 155 |
| Control axis | pcs | C / X / Y / Z |
| Spindle bore | mm | Ø55 / Ø75 |
| Spindle speed | rpm | 45 ~3500 |
| Cross drilling speed | rpm | 3000 |
| Face drilling speed | rpm | 3000 |
| X / Z / Y axis rapid traverse | m / min | 16 |
| Main spindle motor | kw | 7.5 |
| X motor | kw | 1.5 |
| Y motor | kw | 1.5 |
| Z axis motor | kw | 1.5 |
| Cross drilling motor | kw | 1.5 |
| Face drilling motor | kw | 1.5 |
| Coolant pump | kw | 0.375 x 2 |
| Power requirement | kw | 17 |
| Lubrication capacity | L | 2 |
| Coolant tank capacity | L | 300 |
| Machine dimension | mm | 2785x1920x1900 |
| Weight | kg | 3370 |
