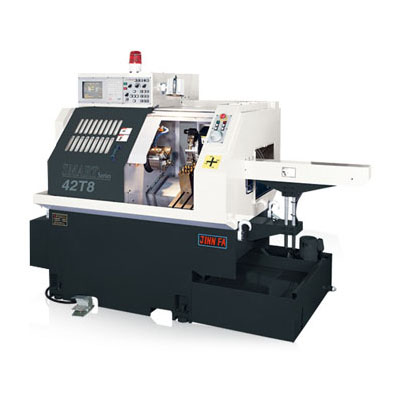

COMPACT CNC LATHE MACHINE
SMART-32／42／32T8／42T8
SMART-32/42/32T8/42T8
The Most Economical Compact CNC Lathe Rigid Structure! High Positioning Accuracy! Profitable Machining!
The SMART series CNC lathe lets you enjoy extraordinary precision and productivity. When you select SMART series, you get more than greater production. You also get all the traditional JINN FA quality, and consistent machining performance. The machine features high speed and lower production costs for bar machining. Upon request, the machine is available to equip with bar feeder and parts catcher for increasing production efficiency.
Specification
| ITEM | UNIT | SMART-42 | SMART-42T8 |
|---|---|---|---|
| Max. swing over bed | mm | 320 | 320 |
| Max. turning diameter | mm | Ø200 | Ø200 |
| Max. turning length | mm | 117 | 140 |
| Max. bar capacity | mm | Ø 42 | Ø 42 |
| Bore of spindle | mm | Ø 44 | Ø 44 |
| Spindle bearing inside dia. | mm | Ø 80 | Ø 80 |
| Spindle nose | mm | A2-5 | A2-5 |
| Spindle speed range | rpm | 45 ~ 3500 | 45 ~ 3500 |
| Spindle motor | kw | 5.5 | 5.5 |
| Max. travel X1 / Z1 axis | mm | 215 / 127 | 215 / 150 |
| Rapid traverse X1 / Z1 axis | mm | 16 | 16 |
| Turret indexing time | sec | - | 0.3 |
| Machine slant degree | 20° | 20° | |
| Slide way type | Square guide way | Square guide way | |
| 3-jaw chuck size | 6” | 6” | |
| Collet type | mm | 173E | 173E |
| Turning tool size | mm | □20 | □20 |
| Boring tool diameter | mm | Ø 25 | Ø 25 |
| Cutting tool size | mm | □20 | □20 |
| X / Z axis ball screw dia. | mm | Ø 32 | Ø 32 |
| X / Z axis feeding motor | kw | 0.75 / 1.0 | 0.75 / 1.0 |
| Hydraulic motor | kw | 0.75 | 0.75 |
| Lubrication motor | w | 150 | 150 |
| Power requirement | kva | 10 | 10 |
| Coolant tank capacity | L | 80 | 80 |
| Machine dimensions (LxWxH) | mm | 2813x1350x1825 | 2813x1350x1825 |
| Weight | kg | 2200 | 2200 |
