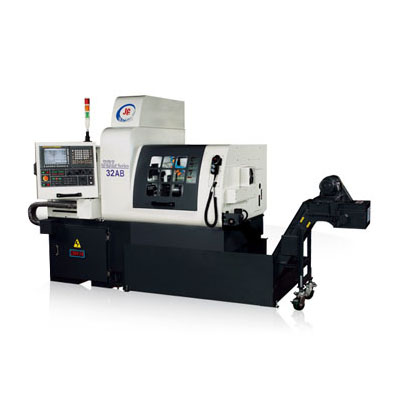

SWISS TYPE SLIDING HEAD CNC LATHE
JSL-26A／32A／26AB／32AB／42AB
JSL-26A/32A/26AB/32AB/42AB
-
JSL-26AB/32AB/42AB
-
Max. turning diameter 26mm ~ 42mm.
-
Seven axes simultaneously movement (X1/Y1/Z1/X2/Z2/C1/C2).
-
Main / Sub spindle C axis movement.
-

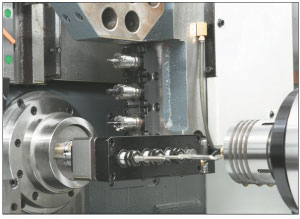

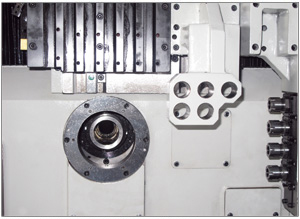

Sub tooling system can make eccentric drilling, milling and grooving function.
-
Side drilling can be converted to end drilling.
Specification
| ITEM | UNIT | 26A | 32A | 26AB | 32AB | 42AB |
|---|---|---|---|---|---|---|
| Max.turning dia. of main spindle | mm | 26 | 32 | 26 | 32 | 42 |
| Max.turning dia. of sub spindle | mm | - | - | 26 | 32 | 42 |
| Max. turning length (Fixed guide bush) | mm | 220 | 220 | 220 | 220 | 220 |
| Max. turning length (Rotary guide bush) | mm | 200 | 200 | 200 | 200 | 200 |
| Max. turning length (Non guide bush) | mm | 65 | 80 | 65 | 80 | 80 |
| Max. drilling capacity of main spindle | mm | 13 | 13 | 13 | 13 | 13 |
| Max. drilling capacity of sub spindle | mm | - | - | 13 | 13 | 13 |
| Max. tapping capacity of main spindle | M10 | M10 | M10 | M10 | M10 | |
| Max. tapping capacity of sub spindle | - | - | M10 | M10 | M10 | |
| Max. cross drilling capacity | mm | 10 | 10 | 10 | 10 | 10 |
| Max. cross tapping capacity | M8 | M8 | M8 | M8 | M8 | |
| No. of external turning tools | pcs | 6 / 5 (Type 42) | ||||
| No. of internal turning tools | pcs | 5 | 5 | 5 | 5 | 5 |
| No. of cross drillings | pcs | 4 + (1) | 4 + (1) | 4 + (1) | 4 + (1) | 4 + (1) |
| Face tool holder No. (Sub spindle) | pcs | - | - | 4 | 4 | 4 |
| Size of tool | mm | 16x16x95~155 / 20x20x95~155(Type 42) | ||||
| No. of axis controls | 4 | 4 | 7 | 7 | 7 | |
| Bore of spindle | mm | 40 | 45 | 40 | 45 | 55 |
| Spindle speed range | rpm | 200~7000 / 200~6000 (Type 42) | ||||
| Rapid traverse X / Z | m / min | 24 | 24 | 24 | 24 | 24 |
| Main spindle motor | kw | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Sub spindle motor | kw | - | - | 7.5 | 7.5 | 7.5 |
| X1 / Z1 motor | kw | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Y-Axis motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Cross drilling motor | kw | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| End drilling motor | kw | - | - | 0.75 | 0.75 | 0.75 |
| X2/Z2 motor | kw | - | - | 0.75 / 0.75 | 0.75 / 0.75 | 0.75 / 0.75 |
| Coolant motor | kw | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Machine dimensions | Mm | 2360x1660x2095 | 2865x1625x2045 | |||
| Weight | kg | 2500 | 2500 | 3700 | 3700 | 3700 |
