Product Features
◢ Work with rubber collet
◢ Parallel Clamp with over 1.5mm range
◢ Really fast collet change with wrench
◢ Adjustable/Removable stopper,can alter to air blow,sensing device
◢ Capable to handle heavy duty work

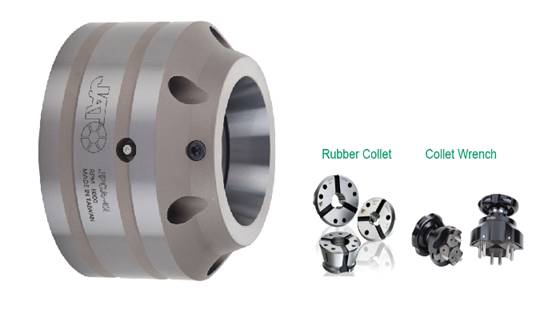

JPCA Introduction

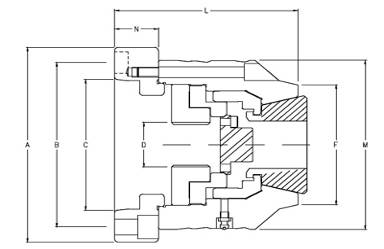

JPCA is a chuck with high-accuracy,heavy clamping force and rigid body.Whole chuck body is made of SUJ2 and harden to HRC60 provide the rigid body that capable to handle the heavy duty working.
The parallel clamping promise to clamp the whole length regardless the tolerance
of the work piece.

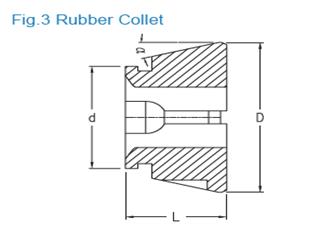

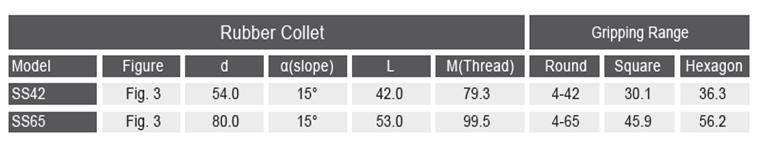

Compare to the typical spring collet ,rubber collet can be used mord wide and stable.
JPCA is designed with a stopper in the center,user can decide to use it with any require or take it off to come a through hole chuck.
