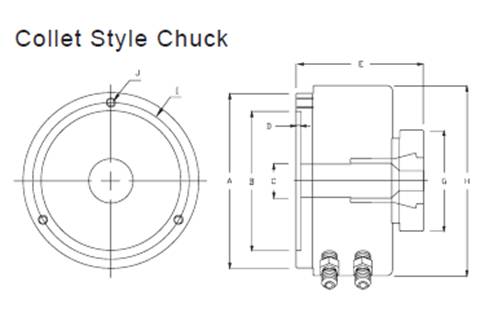

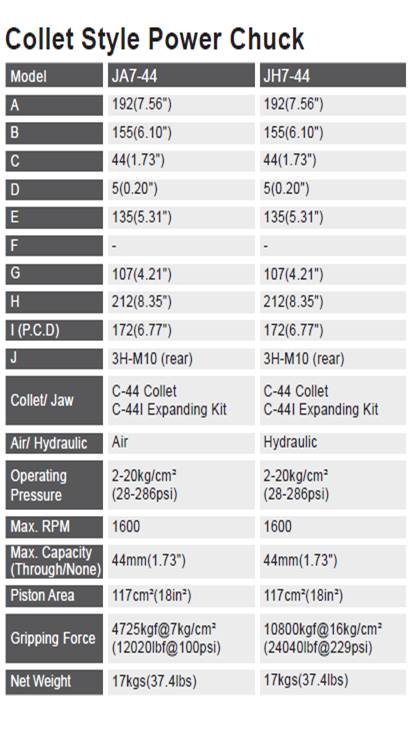

Rotary Power Chuck for Both Gripping and Expanding
(JA7-44/JH7-44)
Introduction

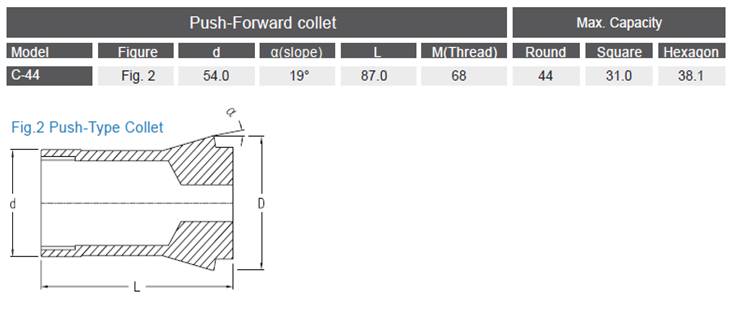

JA7-44/JH7-44 can work with C-44 collet to gripping O.D purpose;also can be switching to I.D clamping as mandrel by install the expanding kits.The expanding kit including a push mandrel,a pin,and a C-44I expanding collet,which C-44I collet is make by order.
Please join our website to see how to order a C-44I in the 『Download』
▲Air/Hydro cylinder is built-in. No need for extra cylinders.
▲Repeatability for collet type power chuck: 0.030mm-0.050mm.
▲Aluminum alloy chuck body, light weighted, good heat dispensation.
▲Allows non-stop operation when loading parts.
▲Widely applied to convert manual lathe into powered ones.
▲Widely applied to build special purpose machines.
▲Do not spray cutting fluid to the chuck directly.
▲Trans JA7-44/JH7-44 from O.D. chucking to I.D. expanding easily by installaing a I.D. Expanding Kit.
