Rotary Power Chuck

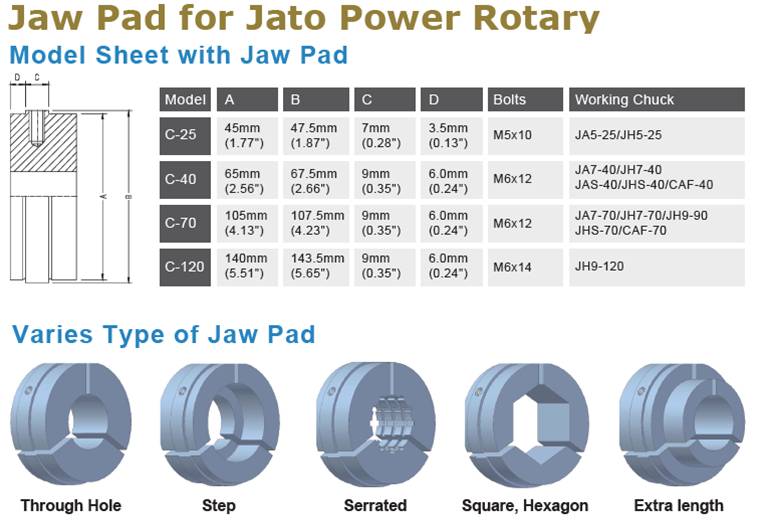

Rotary Power Chuck-C Type Jaw Pad
JA5/JH5-25，JA7/JH7-40，JA7/JH7-70，JH9-90，JH9-120
Intoduction
▲Built in rotary cylinder
▲No draw tube,no rotary cylinder required
▲Extra large piston,provide high clamping force
▲Center through hole,able to arrange auto feeding
▲Best budget solution for manual lathe into automation
▲No fluid direct to the chuck body

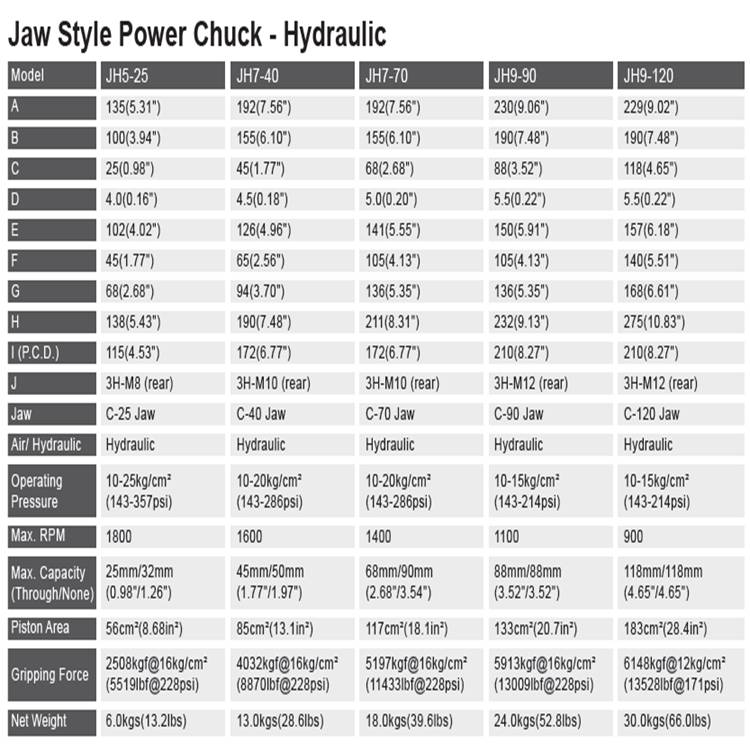

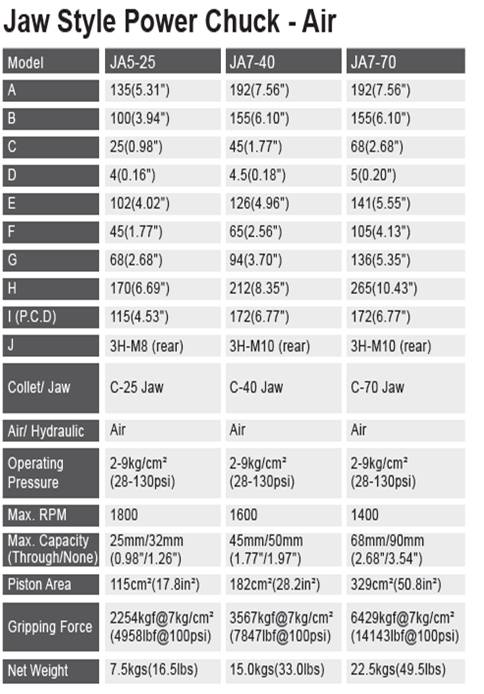

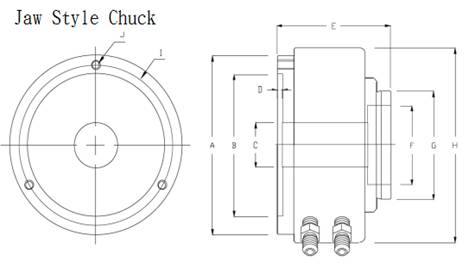

Specification
