Collet Chucks
Collet Chucks Collet Chuck
CL
Thru-Hole
CL
Collet Chuck
PUSH type collet used mainly on turning, CNC, special purpose machines , ect.
High clamping accuracy, high speed and construction of high rigidity.
The installation is the same as “Thru-hole power chuck” and they are replaceable with each other. No need to change the “Draw tube”.
Sealed against swarf, chips and coolant.
The collet used must accord with DIN 6343.
Patent numbers :
Taiwan : PAT.NO.M380842
China : PAT.NO.ZL201020113762.X
Specification
| Model | Plunger stroke (mm) |
Max. Chucking Capacity (mm) | Max. D.B. pull kN (kgf) |
Max. clamping force kN (kgf) |
Max. speed min-1(r.p.m.) |
I kg‧m2 |
Weight (kg) | Matching Stell Collet | Matching cyl. | Max. pressure MPa (kgf/cm2) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Round | Hexagom | Square | ||||||||||
| CL-26 | 4.5 | 3~26 | 4~22 | 4~18 | 17.6(1800) | 37.9(3870) | 8000 | 0.040 | 4.3 | 161E | TK-A533 | 2.4(24) |
| CL-30 | 4.5 | 3~30 | 4~26 | 4~20 | 19.6(2000) | 42.1(4300) | 8000 | 0.038 | 4.2 | 163E | TK-A533 | 2.7(27) |
| CL-36 | 6 | 3~36 | 6~32 | 6~26 | 22.5(2300) | 48.5(4950) | 6000 | 0.062 | 7.0 | 171E | TK-C643 | 2.3(23) |
| CL-42 | 6 | 3~42 | 6~36 | 6~29 | 24.5(2500) | 52.9(5400) | 6000 | 0.060 | 6.9 | 173E | TK-C643 | 2.5(25) |
| CL-52 | 6 | 5~52 | 8~45 | 7~36 | 27.4(2800) | 59.0(6020) | 6000 | 0.101 | 14.3 | 177E | TK-A853 | 2.0(20) |
| CL-6017 | 6 | 5~60 | 8~52 | 7~42 | 29.4(3000) | 63.7(6500) | 5000 | 0.098 | 14.1 | 185E | TK-1068 | 1.8(18) |
| CL-6022 | 6 | 5~60 | 8~52 | 7~42 | 29.4(3000) | 63.7(6500) | 5000 | 0.126 | 16.3 | 185E | TK-1068 | 1.8(18) |
| CL-80 | 6 | 20~80 | 18~69 | 15~56 | 34.3(3500) | 71.5(7300) | 4000 | 0.108 | 17.8 | 193E | TK-A1287 | 1.6(16) |

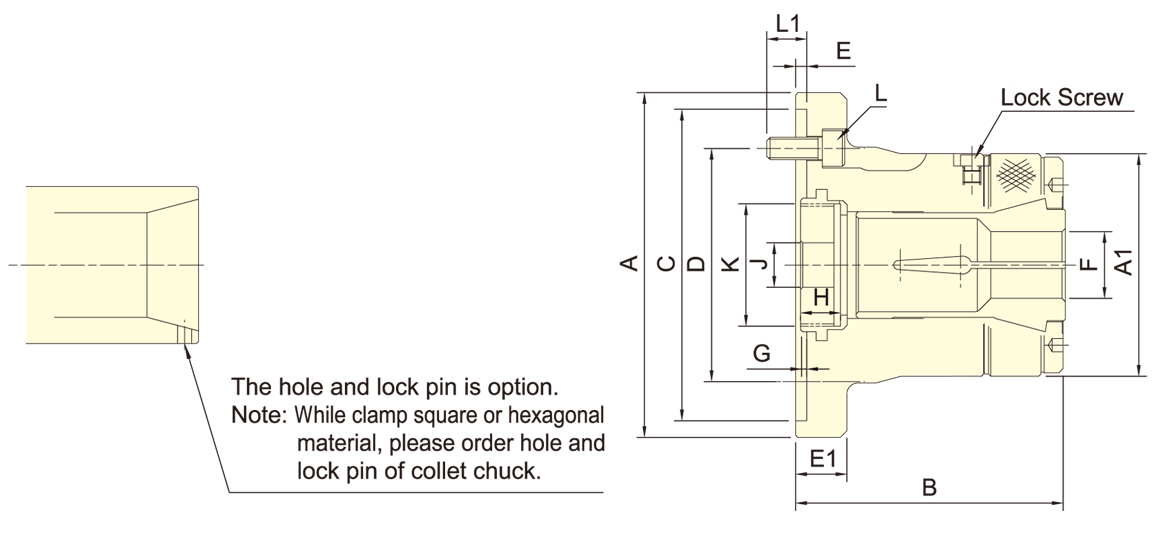

| Model | A | A1 | B | C(H6) | D | E | E1 | F max. | F min. | G max. | G min | H | J | K max. | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-26 | 120 | 85 | 100 | 110 | 82.6 | 4 | 23 | 26 | 3 | 7 | 2.5 | 15 | 12 | M40x1.5 | 3~M10x25 | 16 |
| CL-30 | 120 | 85 | 100 | 110 | 82.6 | 4 | 23 | 30 | 3 | 7 | 2.5 | 15 | 12 | M40x1.5 | 3~M10x25 | 16 |
| CL-36 | 155 | 100 | 120 | 140 | 104.8 | 5 | 23 | 36 | 3 | 7 | 1 | 17.5 | 20 | M55x2 | 3~M10x25 | 18 |
| CL-42 | 155 | 100 | 120 | 140 | 104.8 | 5 | 23 | 42 | 3 | 7 | 1 | 17.5 | 20 | M55x2 | 3~M10x25 | 18 |
| CL-52 | 185 | 130 | 145.5 | 170 | 133.4 | 5 | 27 | 52 | 5 | 9 | 3 | 24 | 45 | M60x2 | 6~M12x30 | 20 |
| CL-6017 | 185 | 130 | 145.5 | 170 | 133.4 | 5 | 27 | 60 | 5 | 9 | 3 | 24 | 45 | M75x2 | 6~M12x30 | 20 |
| CL-6022 | 234 | 130 | 142 | 220 | 171.5 | 5 | 32 | 60 | 5 | 13 | 7 | 24 | 45 | M85x2 | 6~M16x30 | 20 |
| CL-80 | 234 | 156 | 163 | 220 | 171.5 | 5 | 32 | 80 | 20 | 15.5 | 9.5 | 22 | 45 | M100x2 | 6~M16x30 | 20 |
