Special Purpose Power Chucks
Special Purpose Power Chucks Finger Type
2J
Non-Thru-Hole 2-JAW
2J
Finger Power Chuck
Gripping at the end face and preventing deformation of workpiece.
Suitable for thin wall workpiece processing.
The gripping compensating mechanism can grasp the irregular surface workpieces well.
Air-tight pressure detect function is optional.
Specification
| Model | Rotating stroke (mm) |
Claming stroke (mm) |
Jaw's compensation (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. D.B. pull kN (kgf) |
Max. clamping force kN (kgf) |
Max. speed min-1(r.p.m.) |
I kg‧m2 |
Weight (kg) | Matching cyl. | Max. pressure MPa (kgf/cm2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2J-05 | 12 | 8 | 2 | 53 | 25 | 5.0(510) | 4.0(408) | 4000 | 0.015 | 9 | RK-100 OR RK-100(N) | 0.7(7) |
| 2J-06 | 12 | 8 | 2 | 79 | 55 | 6.0(612) | 5.0(510) | 4000 | 0.035 | 9.8 | RK-100 OR RK-100(N) | 0.8(8) |
| 2J-08 | 12 | 8 | 2 | 106 | 75 | 12.0(1224) | 11.0(1122) | 3500 | 0.12 | 20.3 | RK-100 OR RK-100(N) | 1.7(17) |
| 2J-10 | 12 | 8 | 2.5 | 150 | 119 | 12.0(1224) | 11.0(1122) | 3500 | 0.28 | 30.7 | RK-100 OR RK-100(N) | 1.7(17) |
| 2J-12 | 12 | 8 | 2.5 | 200 | 169 | 12.0(1224) | 11.0(1122) | 3000 | 0.52 | 41.2 | RK-100 OR RK-100(N) | 1.7(17) |

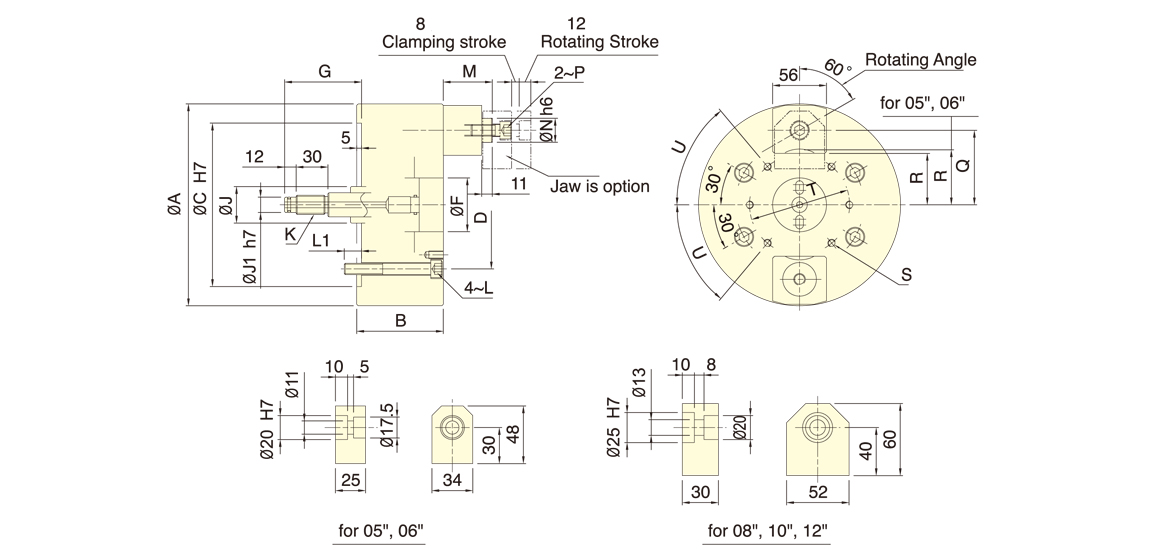

| Model | A | B | C | D | F | G max. | G min. | J | J1 | K | L | L1 | M max. | M min. | N | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2J-05 | 135 | 86 | 110 | 82.6 | 40 | 75 | 55 | 25 | 9 | M12X1.75 | M10 | 15 | 56 | 36 | 20 | M10 | 42.5 | 27 | 4~M6 | 50 | 30° |
| 2J-06 | 165 | 86 | 140 | 104.8 | 45 | 75 | 55 | 28 | 12 | M16X2 | M10 | 15 | 56 | 36 | 20 | M10 | 57.5 | 40 | 4~M8 | 64 | 30° |
| 2J-08 | 210 | 90 | 170 | 133.4 | 56 | 80 | 60 | 38 | 16 | M20X2.5 | M12 | 18 | 71 | 51 | 25 | M12 | 77.5 | 53.5 | 6~M8 | 104 | 50° |
| 2J-10 | 254 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20X2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 99.5 | 75.5 | 6~M8 | 140 | 50° |
| 2J-12 | 304 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20X2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 124.5 | 100.5 | 6~M8 | 190 | 50° |
