Servo Motor Lathe Turret
Servo Turret

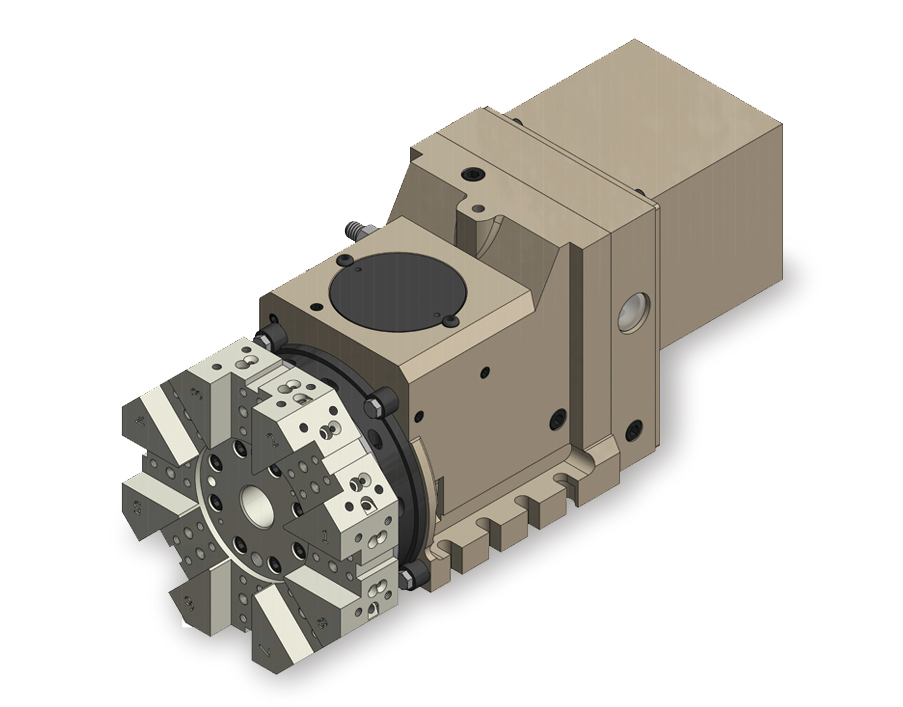

LS-100SV
Servo Turret Features:
The turret rotation and indexing is driven by a special servo motor.
High torque output, low noise.
Fast tool change without tool change error.
The turret can be controlled by various controllers.
Specification
Specifications And Accessories
| MODEL | LS-100SV | |
| Center height | mm | 50 |
| Number of tools | N | 6T / 8T |
| Rotating time (tool-to-tool) | sec | 0.31 |
| Rotating time (including locking) | sec | 0.41 |
| Total indexing time for 180° | sec | 0.62 |
| Total indexing time for 180° (including locking) |
sec | 0.72 |
| Gear speed ratio | 36:1 | |
| Curvic couplings type | 3 Piece type | |
| Servo motor | HG-KR43JK | |
| Hydraulic working pressure | Kgf/cm² | (20-25)20 |
| Flow rate | L/min. | 20 |
| Thrusting force of hyd. cyl. | Kgf | 663 |
| Accuracy of repeatability | mm | 0.003 |
| N.W. (without tool disc) | Kg | 30 |
