JIH-CNC SD5 (3 Axis And 4 Axis) 5th Axis CNC Sliding Double Column
Fixed table in combination with travelling column and beam that makes the machine suitable for machining extra large work pieces.
Advanced 5-axes head is designed for any angular position.
X-axis travel is transmitted through pinion/rack and driven by European-imported gearbox, featuring high torque output, no backlash and high positioning accuracy (optional).
A-axis rapid traverse rate is available for 36 M/min, 50 M/min is available too(optional).
Three axes are equipped with P class high precision linear guide ways..
X, Y, Z-axis ball screws are directly coupled with servo motors. 24-tools magazine.
Choice of various controllers — Mitsubishi, Fanuc and Siemens.

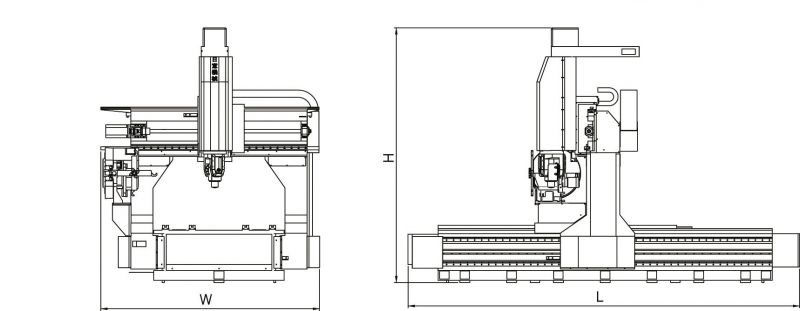

| Model | 6500SD5 |
| (LxWxH | 6,000x3,300x3,300mm |
| T-Slot | 3,700x1,690mm |
Products Specification
| Model | JIH-CNC 6500 SD5 |
|---|---|
| Stroke | |
| X-Axis Stroke | 3,700 mm (Opt.6,500 mm) |
| Y-Axis Stroke | 1,950mm (other travel opt.) |
| Z-Axis Stroke | 700 mm (other travel opt.) |
| C-Axis Stroke | ±213° |
| A-Axis Stroke | ±120° |
| Distance from spindle nose to table surface(Vertical) | 20 mm |
| Distance from spindle nose to table surface(Horizontal) | 245 mm |
| Table | |
| Table size | 1,700 x 3,600 mm |
| Max. Loading Capacity | 3,000 kgs |
| Spindle | |
| Spindle Speed | 24,000 R.P.M. |
| Motor | 18kw |
| Taper | HSK F63 |
| Feed Rate | |
| Rapid Traverse(X/Y/Z) | X:36m/min, Y:40m/min, Z:40m/min |
| Cutting Feed Rate | F:1~5,000 mm/min |
| 3-Axes Servo Motors | X:7.75 kw x 2pc, Y:7.75 kw, Z:7.75 kw |
| ATC | |
| Magazine Capacity | 24 Tools |
| ATC Type | Arm type |
| Max. Tool Length | 300 mm |
| Max. Tool Diameter | 100 mm |
| Max. Tool Weight | 7 kgs |
| Machine Weight | 20,000 kgs |
| Machine Dimensions | 6,000 x 3,300 x 3,300 mm |
| Required Pneumatic Pressure | 6 kgs/cm² |
*We reserve the rights to modify above specification without notice.
