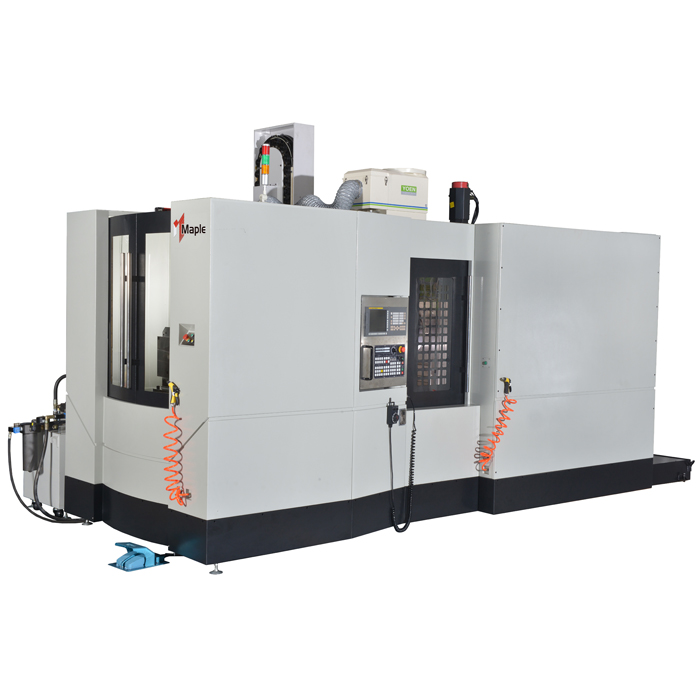

CNC Horizontal Machining Center

MBM series

With Single & Twin Table Type.

X/Y/Z Travel :700/800 mm

Table Size : 500/630 mm

Specification

MODEL	UNIT	TW-400
Travel
X-axis	mm	620
Y-axis	mm	560
Z-axis	mm	630
Distance between spindle nose to table center	mm	100-730
Distance between spindle center to table center	mm	80-640
Positioning	mm	± 0.008 / 0.005 (with Linear Scale)
Repeatibility	mm	± 0.005 / 0.003 (with Linear Scale)
Spindle
Max. spindle speed	r.p.m.	Direct Driven 10000 rpm (Opt. 15000)
Spindle motor power	kw	15/18.5
Spindle taper		BT40
The diameter of bearing	mm	70
Table
Table dimension	mm	400 x 400
Quantity of table		2
Indexing degree		1'(0.001' opt.)
Max. swing and height	mm	Ø630 x 700
Pallet change time	sec	10
T-Slot (width x T x gap)	mm	24-M16 x P2 x 80
Load capacity	kgs	400
Feed Rate
Rapid traverse	M/min	48/36/48
Cutting feed rate	M/min	1~10
Feed motor X/Y/Z axes	kw	3 x 2/7.0/4.0
Feed motor B axis	kw	1.6(3.0 Opt.)
ATC
Tool change type		Arm type
Tool capacity	set	40(60/90/120 opt.)
Max. tool weight	kgs	7
Max. tool length	mm	300
Max. tool diameter	mm	80/150
Tool change time (T-T)	sec	5.5
Other
Compressed air supply	kgs/cm²	6
Floor space ( L x W x H )	mm	4287 x 2805 x 2780
Machine net weight	kgs	14060
Machine gross weight	kgs	14560
