Rotary Surface Grinders

RG-200S

Machine Feature

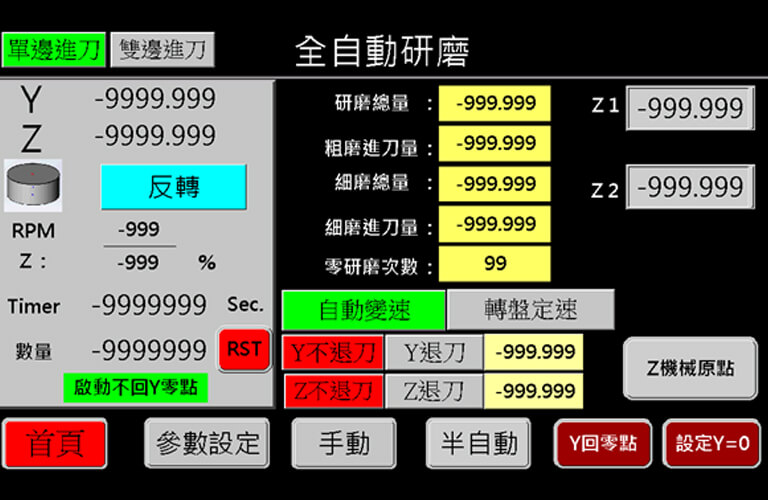

Easy to learn interface

Specification

Provide operator's easy and friendly operation interface

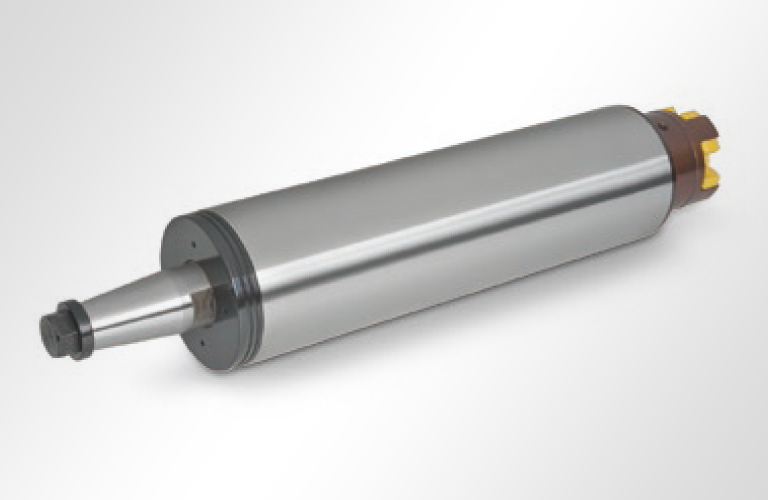

Precision spindle with V3 low vibration motor

Description	RG-200S
General capacity
Table size	200
Max.grinding radius	125
Spindle center to chuck surface Max.height	200
Rotary table
Rotary magnetic chuck Max. speed	200 rpm
Power	400W
Grinding wheel
Wheel size(diaxwidthxbore)	180x13x31.75
Spindle motor	2HP
Grinding wheel speed(50/60HZ)	2850/3450rpm
Vertical downfeed
Rapid feed	230 min/mm
Vertical MPG per revolution	0.01mm/MPG
Vertical MPG per graduation	0.001mm/0.005mm/0.01mm/MPG
Packing size
Net weight	1000/1200kgs
Packing size(LxWxH)	140x120x210cm

Standard Accessories

Grinding Wheel With Flange

Wheel Balancing Arbor

Vertical MPG Microfeed Device

Leveling Screw & Plate

Operation Manual

Wheel Balancing Base

Working Lamp

Wheel Dresser With Diamond

Toolboc & Tools

Permanent/ Electro Magnetic Chuck

Parallel Dressing Attachments

Demagnetizer

Coolant System W/Splash Guard

Coolant System & Dust Unit W/Splash Guard

LED Working Lamp
