Type of Operation
Double Column Band Saw ／ Fully-Auto Band Saw

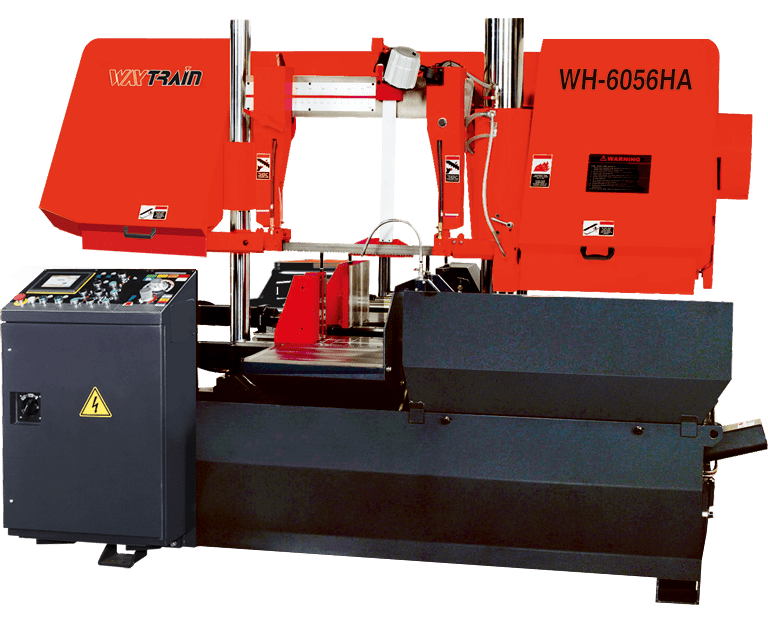

WH-6056HA
H560 W600
Power driven wire brush
Human-machine interface control panel
Hydraulic blade tension
Hydraulic automatic chip conveyor
Hydraulic carbide blade guide
Full stroke hydraulic vises
Inverter controls blade speed
Rotary encoder measure feeding length
Can save 10 cutting presets memory
Vise pressure regulator (option)
Hydraulic vertical press device (option)
Specification
Specifications
| Capacity (H x W) | ● 560 mm ▅▅ 560 x 600 mm |
Bundle Cutting | 230 ~ 400 x 120 ~ 270 mm |
| Minimum No Material Detecting | 110 mm | Blade Size | 54 x 1.6 x 6600 mm |
| Blade Speed | 25~75 mpm | Blade Motor | 10 HP (7.5kW) |
| Hydraulic Motor | 3 HP (2.2kW) | Coolant Pump | 1/4 HP (0.2kW) |
| Hydraulic Tank | 75 L | Coolant Tank | 155 L |
| Cut off Length | Over 10 mm | Feeding Stroke | 400 mm |
| Table Height | 810 mm | Minimum Residual Work Length | 120 mm |
| Packing Size | 3270 x 2195 x 2280 mm | N.W./G.W. | 4500kg / 5000kg |
